Ankylo - Vanchor lock (3.18" Elmax Blade & Aluminum Handle)











Fun:) Functional:) Secure:)

Let's Dive into the Details
1. Double Safe Desgins
2. Thick Steel Lock Plate
3. Extra Large Ball Bearing
4. No Protruding Part

1. BIG Front Flipper,
2. GRIPPY Back Flipper,
3. COMFORTABLE Thumbhole
4. EASY-TO-USE Press Button

Glove On, Gloves OFF, ALL-SEASON, No Problem

We take ergonomics seriously.
6061 Aerospace Grade Aluminum for the Ultimate Weight-to-strength Ratio
We did Tons of Tests to Find the Most Comfortable Shape for You.
All Corners are Double CNC Chamfered
Hard Coated Matte Finish or Machined Texturized Pattern for Secured Control in Adversary Conditions.
Precision Machined Weight Relief Pockets inside the Aluminum Handles to Reduce User Fatigue.

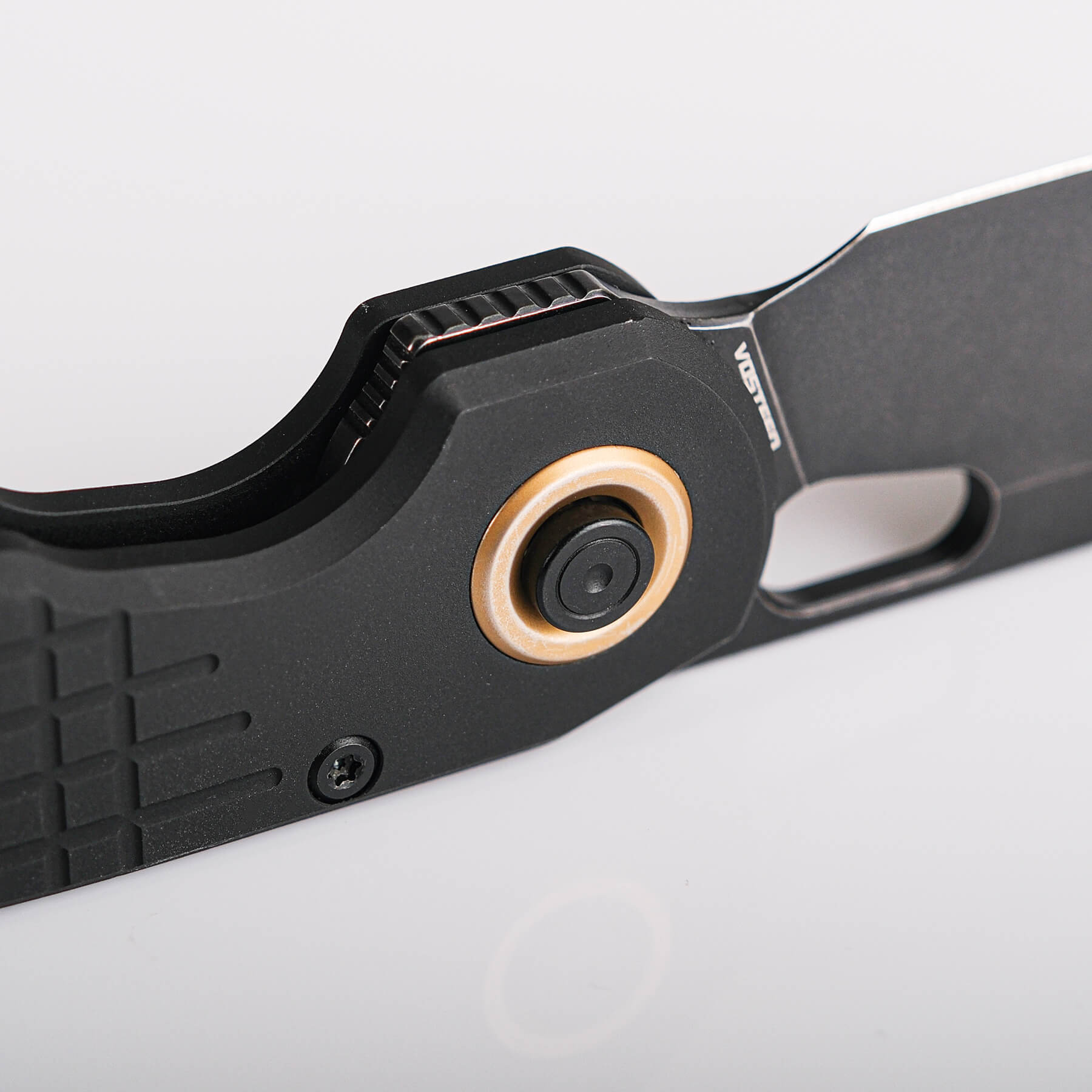

A N52 Neodymium Cylindrical Magnetic Connector is Inserted inside the Lock Shaft to

ensure the button is recessed even when the blade is in a closed position.

Less Protruding, More Security.

Like You, We Love Engineering. The N52 Magnetic Connector and the Thick Lock Plate

form a Joint Forces to Stabilize and Reinforce the Lock. No matter whether the lock is

engaged or not, there will always be contacts among the three parts, thus creating an

integral fail-safe system.

HOW WE BEGIN?

In short, We Love Knife, and We love Making Knife for You. We always want to create fun,

unique and functional knives for You.

Through our daily discussions and interactions with Vosteedians, we got the idea that you want a knife that is:
A pivot with DOUBLE functions, Pivot = Button
A knife with a NEW lock mechanism
A knife with tons of FUN factors
A knife with a COMFORTABLE design
A knife with a SECURED lock-up

After almost 27 months of hard working, head stracthing, coffee and beers, the Ankylo is Finally ready to roaming on the Knife Horizon!

It's our most sincere wish that our Patented V-anchor lock Ankylo can bring joy to you, and put a big smile on your face.

The Ankylo is powerdered by a 3.18" Bohler Elmax Blade. The Elmax steel is a well-rounded

blade material that combines excellent edge retention, high wear resistance, good

corrosion resistance, high toughness, and ease of sharpening. The Handles are made

from 6061 Aerospace Grade Aluminum, which offers great Strenghth to Weight Ratio,

and Allows Colorful Anodization.

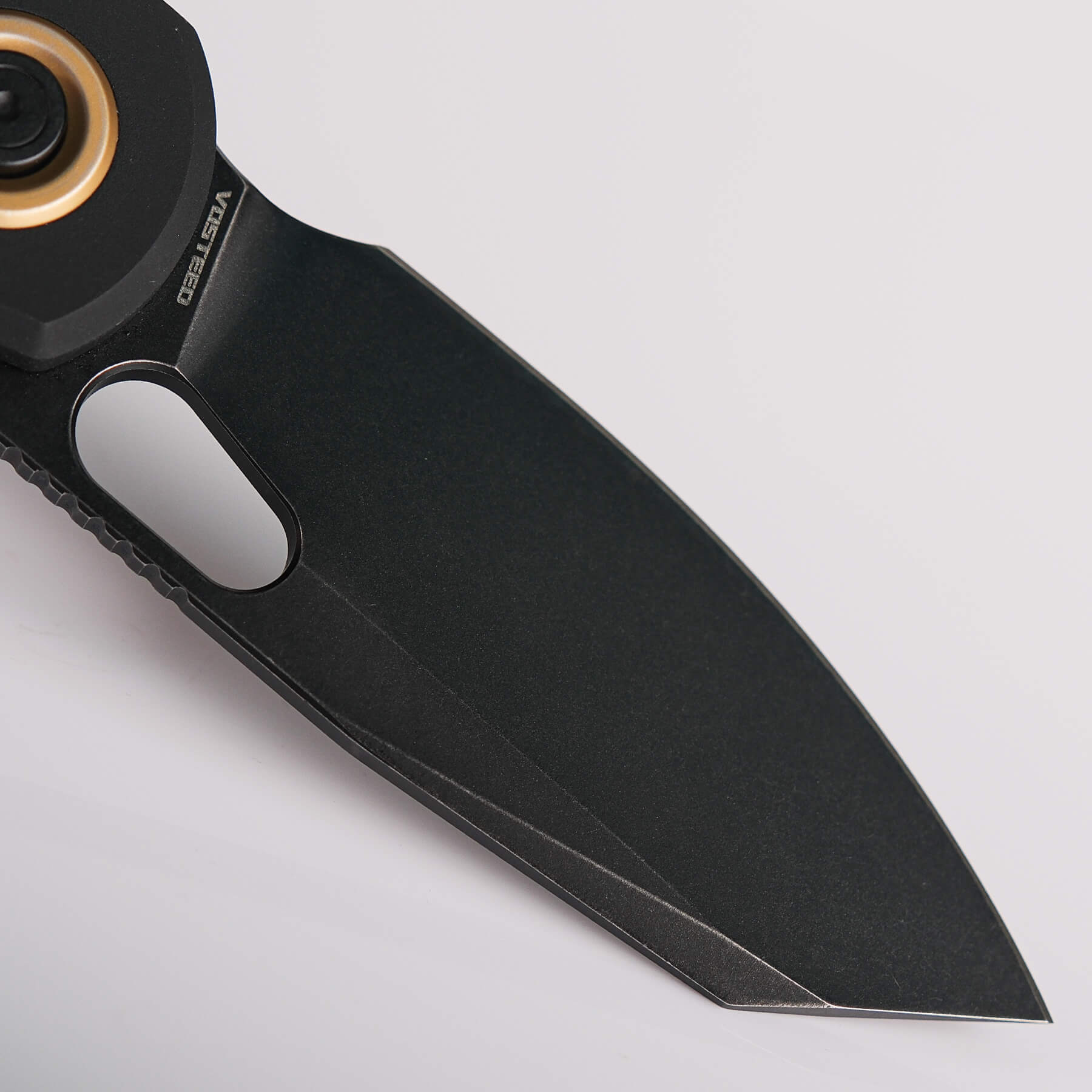

The Elmax reverse tanto blade is designed to have a sharp edge and a strong tip for

precision cutting and piercing. Combined with a nice belly,  the Ankylo is true

multitasker for jobs like opening packages, cutting paper and cardboard, sharpening

pencils, preparing food, and skinning electrical wiring or cables.

Whenever you open the knife, you hear the SWISH! This pleasing sound is well-designed

and contributed by several metal components within the knife. Let's Swish! Open the Joy!

Hey, I'm Yue, a fellow knife enthusiast, and I love working on different mechanical designs.

When I was a kid, tearing apart gadgets has become my favorite hobby.

Ever since I joined the EDC and knives community, different locking mechanisms have fascinated me.

After talking with my knife friends, doing a pivot lock knife has become my obsession.

After two years of trial and error, and tons of discussions with other knife makers, users,

and mechanical engineers, the V-Anchor lock finally is here. It has been a long,

challenging, but extremely rewarding journey. Every thought has moved from my head

to the paper, then to the CAD, and finally become a working prototype.


One thing I deeply appreciate is the support and knowledge from our knife community.

Last year, when I took the first prototype to the Blade Show, I just couldn't get the

detent to work properly. After talking to several people, I figured that by adding a detent

ball on the lock block, this problem could be solved. Another problem that I

encountered in the first two rounds of prototyping was that I couldn't create enough

clearance depth for the lock to travel. Thanks to my local mechanic friend, I changed the

shape of the lock block, and the third prototype finally worked. Lastly, filing a patent was

a huge challenge for me, and I can't thank Vosteed group members enough for all the tips that they gave me.

To be honest, I still feel surreal that we have tuned an idea into a working tool. Nothing

is more rewarding to me than seeing all the smiles and joy that Ankylo brings.

Thank you, thank you, thank you.

SPECS:

Blade Length: 3.18" | 80.90 mm
Overall Length: 7.75" | 196.90 mm
Blade Width: 1.22" | 31.00 mm
Blade Thickness: 0.134" | 3.40 mm
Blade Material: Elmax
Blade Grind: Flat
Blade Style: Reverse Tanto
Blade Finish: Black Stonewash / Satin / Stonewash
Hardness: HRC 60±2
Handle Length: 4.57" | 116.00 mm
Handle Width: 1.06" | 27.00 mm
Handle Thickness: 0.563" | 14.30 mm
Handle Material: Aluminum
Color: Black / Green / Gray / Orange / Blue
Weight: 4.76 oz | 135.00 g
Opener: Front Flipper | Back Flipper | Thumb Hole
Lock Type: V-anchor Lock
Pivot Assembly: Caged Ceramic Ball Bearing
Pocket Clip:  Non-reversible | Stainless Steel
Carry Position: Tip-up
Knife Type: Manual Folding
Designer: Yue
