Rook Flashlight (Reylight X Vosteed)

The Rook is the first collab light between Reylight and Vosteed.

The Rook is a triple LED high output high CRI compact EDC flashlight. It is made from best-in-class components such as Nichia 519a or XPL HI Leds, sapphire lens, USB-C ready 18350 lithium battery, and many many more. Beneath the lens, the Rook is powered by a well-thought and dedicatedly programmed user interface. The Rook provides an excellent balance of great functionality and unique aesthetics for your daily adventures, and you will definitely Rock the Rook.

How it began?

Rey has extensive experience in making custom flashlights, both his iconic Pineapple and Lan flashlight are highly sought after in the EDC community. Since I am a flashlight collector and chess fan, I talked Rey into making this Rook-shaped flashlight with me.

Rey and I have known each other for more than half a decade, and I have always been amazed by his products and work ethic. Whenever we get together, we often discuss how to improve the functionality and playability of our products.

Compared to Rey's other premium flashlights such as Krystal and Dawn, the Rook has a simpler programmable user interface. The Rook is engineered for both new and advanced flashlight users, as it provides a great balance between functionality and playability. we sincerely believe that our Rook flashlight will be a great daily tool and a nice EDC collection piece for you.

The moonlight mode is a useful and comforting mode for night reading, map reading, checking sleeping baby, camping in the tent, and any tasks that you don't want to shock your night-adapted eyes or disturb others. Enjoy the convenience of just 0.5 LUMENS to light up what's right in front of you without alerting it.

With Strobe and SOS features, the Rook can do its best to hold the danger and panic at bay. The strobe function is capable of temporarily blinding your attacker in dimly-lit places while the SOS function delivers a crucial tactical advantage by issuing SOS signals to rescue you from dangerous and threatening situations.

DESIGNED TO BE FUN AND FLEXIBLE

With the simplified user interfaces and beginner-friendly programming, it actually works for most light lovers who'd like to dabble in the custom-configured flashlight. With just a few quick taps of the switch, you can change the lighting groups to cater to your demand.

Never set in stone, flexibility in hand.

You can reprogram the light from the standard default, enable/disable the moonlight mode and memory function to your liking.

The cherry on the cake is that you can quickly access Turbo mode.

UI Table

Mode groups

Group1=1st blink: (Moonlight)-2%-20%-100%

Group2=2nd blink: (ML)-10%-40%-100%

Group3=3rd blink: (ML)-2%-10%-50%

Group4=4th blink: (ML)-50%-100%-strobe-SOS

Mode memory. Enable or disable （default off)

Moonlight mode. Enable or disable (default on)

Mode order. Low-Mid-High or HML (default LMH)

Factory reset. Resets all options to their original states.

PERSUE TRUE-TO-LIFE BEAM WITHOUT COMPRISING

Equipped with triple Nichia 519A 4000K LED for a max output up to 1800 lumens and Total Internal Reflection (TIR) lens for tender and balanced beam and a fair amount of surround light for wide peripheral vision.

4000K neutral light ensures a uniform and smooth spot with accurate color rendering (CRI R8090), thus colors will be true-to-life and not washed out.

With a fairly high PWM frequency at 31 kHz, there's no flickering effect to naked eyes and phone camera, highly reducing eye strains.

*TIR lenses (Left) can make light more concentrated and more efficient.

READY FOR YOUR OUTDOOR ADVENTURE

The Rook is waterproof to a depth of 1 meter in accordance with IPX7, which allows you to use it against rain or underwater. We've tested that it can be used in extreme weather.

CREATE YOUR OWN ONE-OF-A-KIND FLASHLIGHT

There are 7 tritium slots in total(3 trit-slots on the tail button, and 4 trit-slots around the tail)

Tritium size: 1.5*6mm (not included)

The light also features 7 slots for 1.5 x 6mm tritium tubes to further customize your own light, and add to its uniqueness. Machined from aerospace aluminum and hard anodized in a number of colors for added style and durability.

Say goodbye to darkness and hello to the Rook to help you through your day.

ROCK-SOLID DURABILITY

* The light features durable high-strength and oxidation-resistance aerospace aluminum with a hard-anodized abrasion-resistant finish for better scratch resistance and wear resistance. The body is knurled to provide a secure grip.

* Sapphire crystal lens is a reliable escort of the emitters with its superlative scratch resistance and long-lasting value.

PARTNER WITH POWER

The Rook is powered by a customized 18350 rechargeable Li-ion battery of 1100 mAh with a standard USB Type-C port in the neck for fast charging. Easy charging without carrying an additional battery bay charger. The moonlight mode lasts as long as 7 days of continuous use.

Attention to detail

• Temperature control system. The temperature of the Rook is limited to 55°. That is, when the temperature reaches 55 degrees Celsius, the brightness of the flashlight will immediately decrease.
• Reverse polarity protection prevents circuit damage from reversed batteries.
• LVP (low voltage protection) prevents the battery from over-discharging.
• Double springs keep the battery from bouncing around and damaging the internals.
• Golden-plated conduction springs have great conductivity and oxidation resistance.
• The mechanical tail cap switch is perfectly configured to precisely control the one-handed intuitive operation and prevent accidental activation.
• It also features a custom-made glow-in-the-dark rubber cap for superior waterproofing and a glow-in-the-dark gasket for an upscale appearance

SPECIFICATIONS

Technical Details

• Material: Aluminum
• Emitter(All): 3* Nichia 519A （4000K）

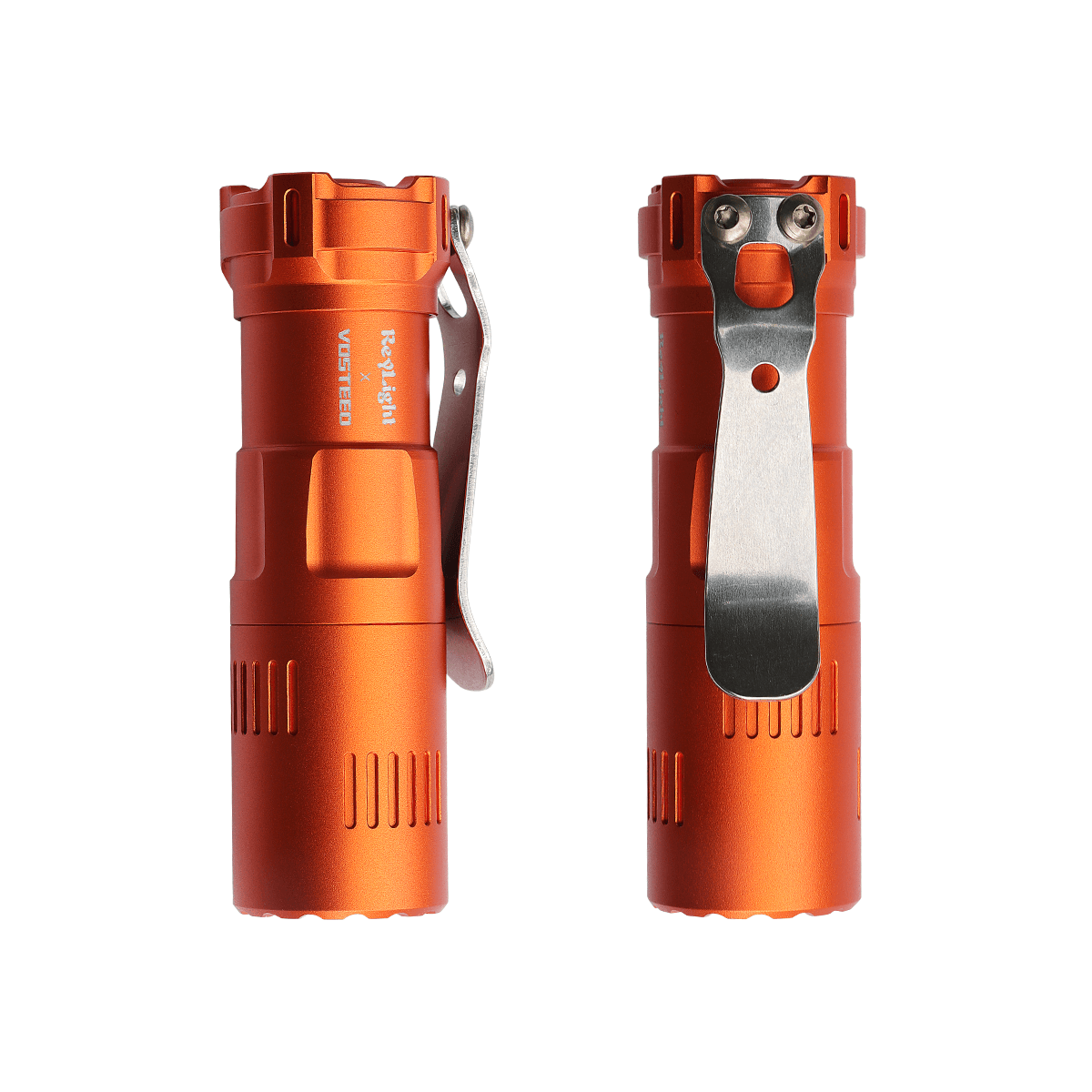

• Emitter (Orange Rook): Cree XPL HI (6000K)
• Lens: Sapphire
• Optics: TIR Optic Lens

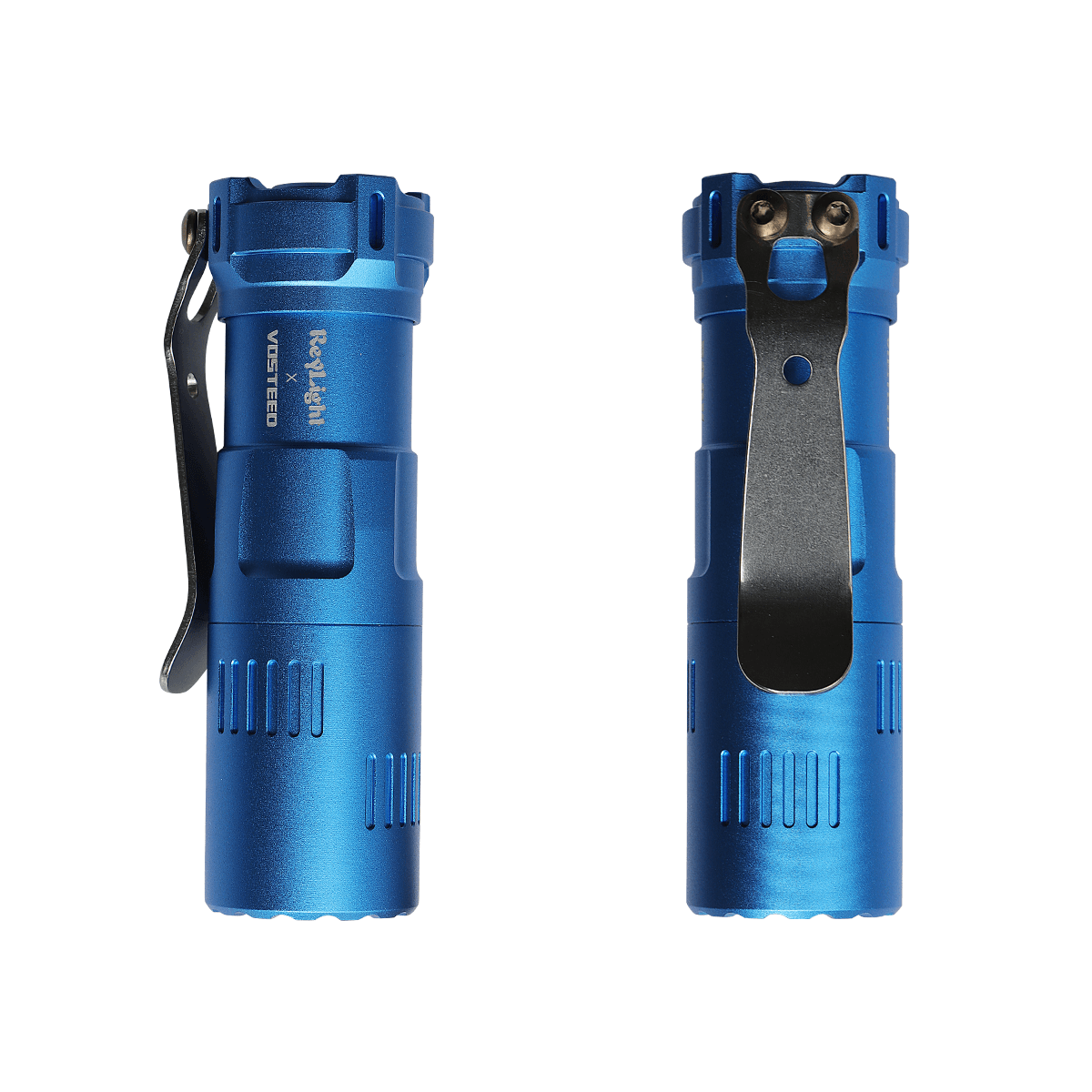

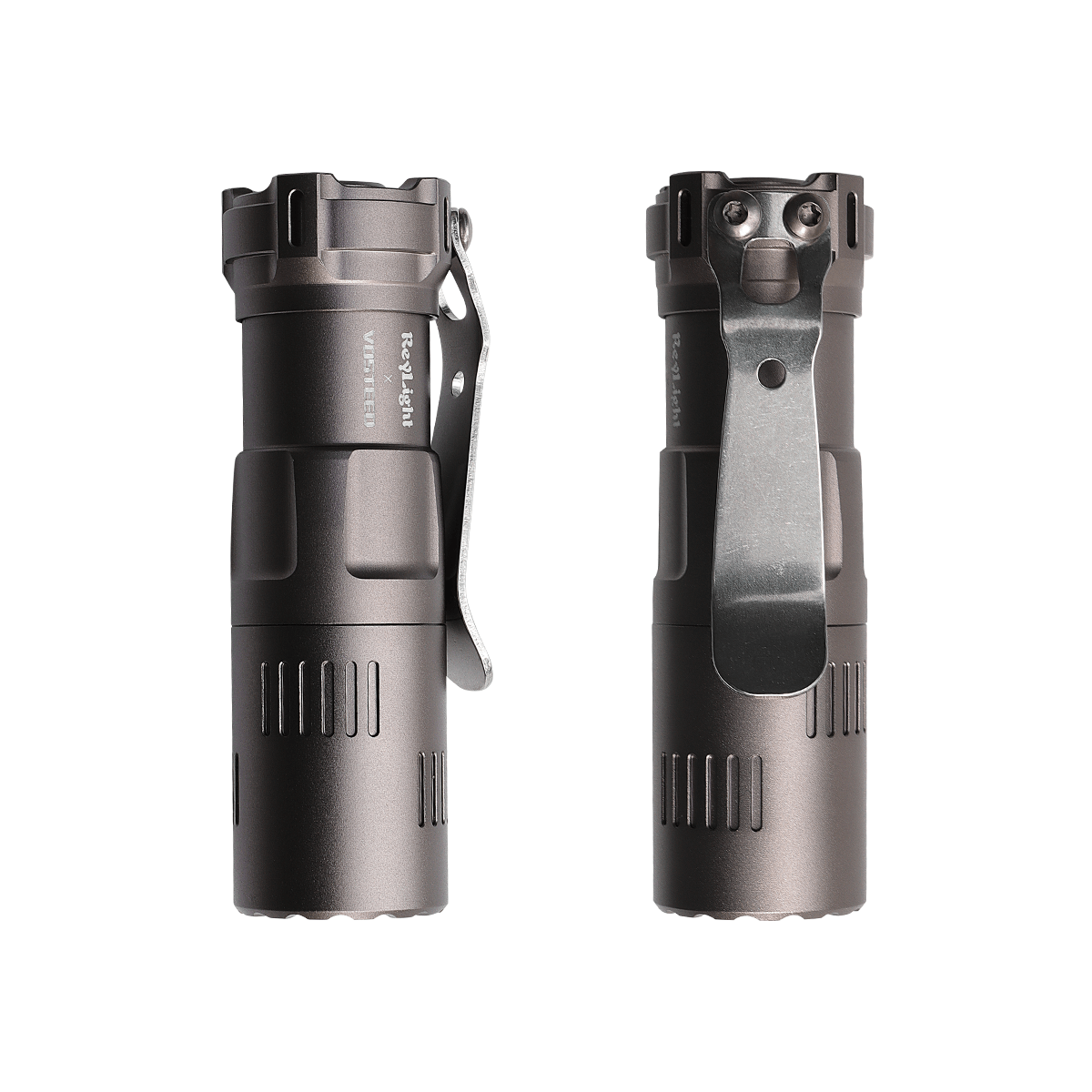

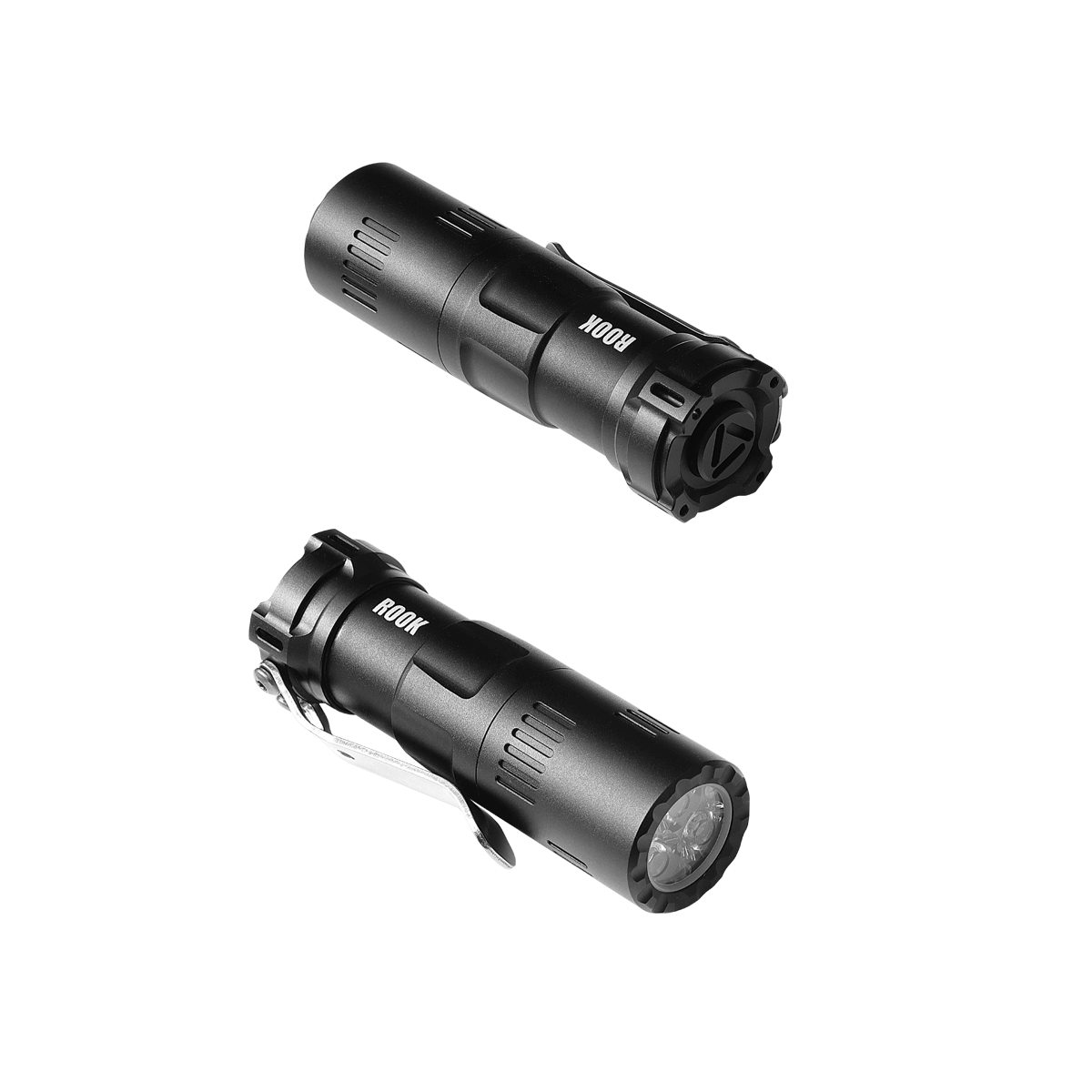

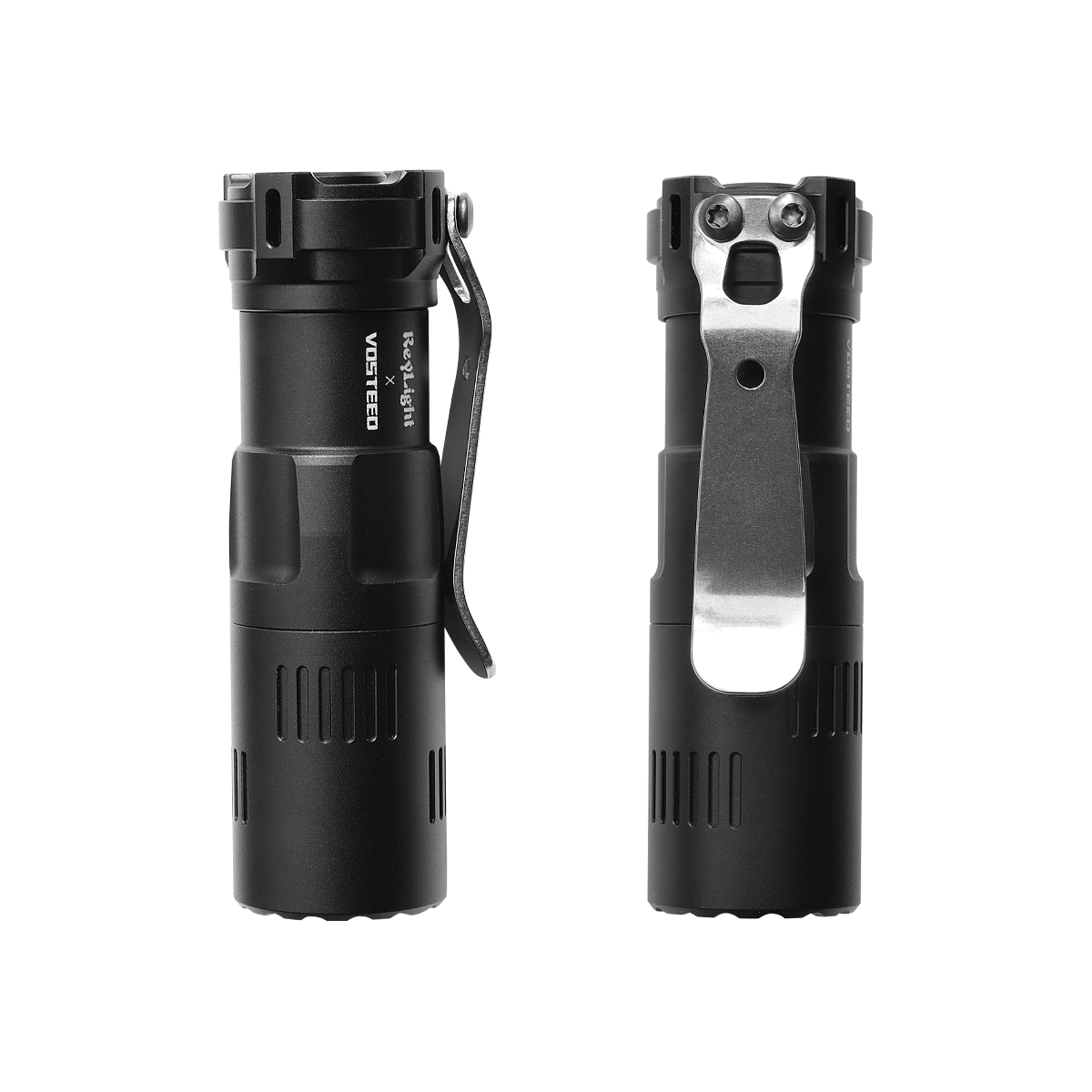

• Color: Blue, Orange, Red, Black, Grey
• Power Source: Battery Powered
• Max Output (Nichia): 1800 lumens
• Max Output(XPL): 3000 lumens
• Light Source Type: LED
• Battery Cell Composition: Li-ion
• Weight: 3.5 oz(100g) with battery
• Cell: 1 * 18350 1100mAh 3.7V Rechargeable Battery (included)
• Brand: Reylight X Vosteed
• Batteries Included: Yes

* All models have Nichia 519A while the orange model has 2 options, you can either choose Nichia 519A or XPL LEDs if you are going to purchase ORANGE Rook.
